Pressboard Circle Cutting Machine PCS-1000 ｜ Bailipower

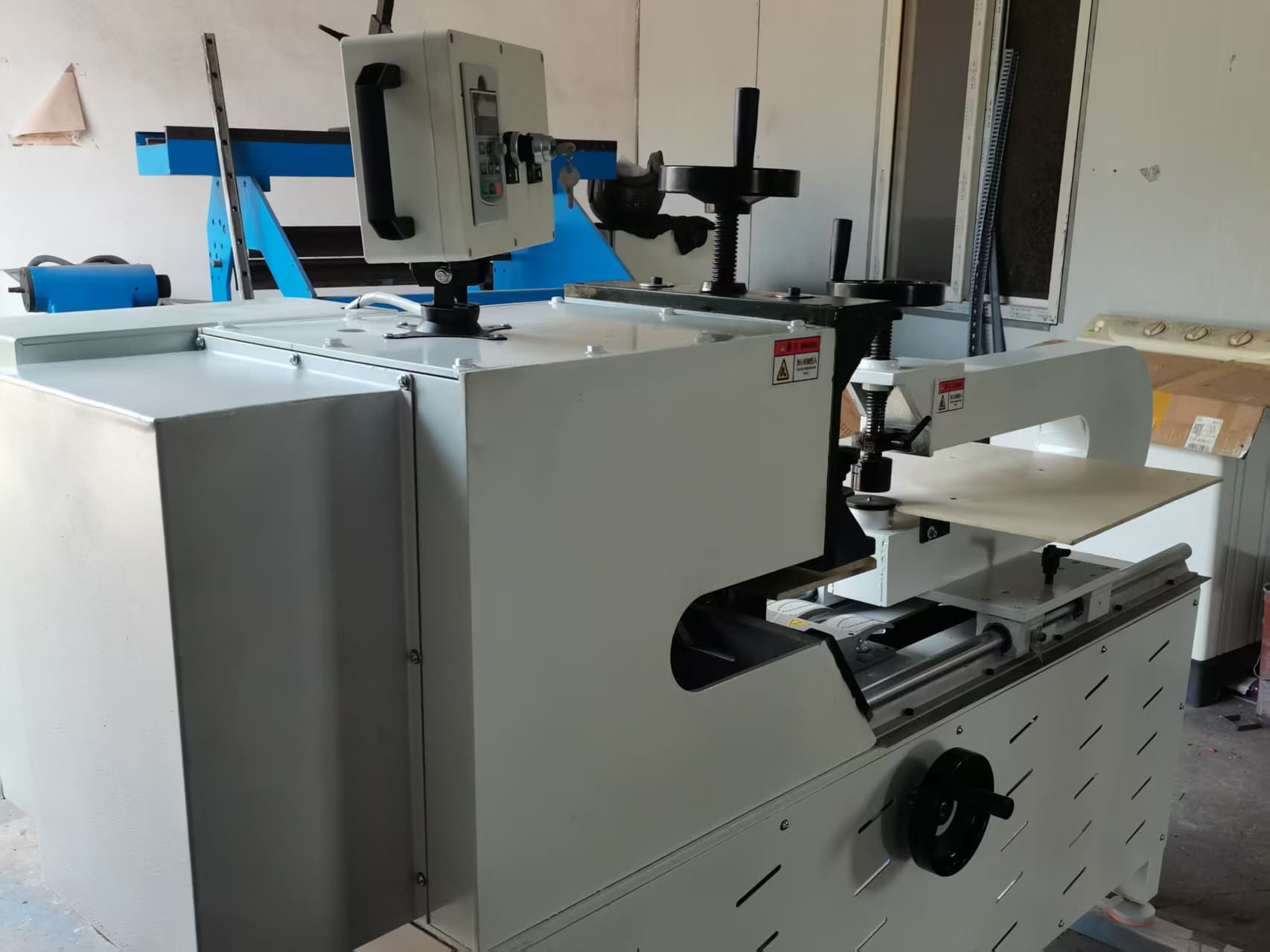

Bailipower Pressboard Circle Cutting Machine PCS-1000 is specially designed for precision cutting of circular insulation components used in transformer manufacturing. It efficiently processes transformer pressboard, insulation paper, fiberglass board, and other rigid electrical insulation materials into high-quality inner and outer circles with smooth, burr-free edges.

Built for reliability, accuracy, and ease of operation, the PCS-1000 helps transformer manufacturers improve production efficiency while maintaining consistent product quality. Whether producing insulation rings for dry-type transformers, oil-immersed transformers, motors, or other electrical equipment, this machine delivers stable performance and long service life.

At Bailipower, we believe that manufacturing an excellent machine is only part of our responsibility. More importantly, we help customers choose the right machine and use it better, ensuring every investment creates long-term value.

1. Key Features

♠ High Precision Circle Cutting

The precision mechanical structure ensures excellent roundness and dimensional consistency, producing accurate insulation circles for transformer applications.

♠ Smooth Burr-Free Edges

The optimized cutting mechanism produces clean cutting surfaces, reducing secondary finishing work and improving overall product quality.

♠ Adjustable Cutting Diameter

The machine can quickly adjust to different inner and outer circle sizes, making it suitable for both standard production and customized orders.

♠ Stable Mechanical Performance

Designed with durable mechanical components, the PCS-1000 provides reliable operation during continuous industrial production.

♠ Easy Operation and Maintenance

Simple mechanical adjustment and a user-friendly design minimize operator training time and reduce maintenance costs.

♠ Low Energy Consumption

The efficient drive system provides stable cutting performance while maintaining low operating costs.

2.Three Control Options to Meet Different Production Needs

Every transformer manufacturer has different production requirements. Some customers prioritize affordability and simple operation, while others require automation and high production efficiency.

To help customers choose the most suitable solution, Bailipower offers three different control systems for the PCS-1000 Pressboard Circle Cutting Machine.

2.1 Standard Relay Control

The relay-controlled version is designed for customers who prefer a simple, economical, and highly reliable electrical system.

Advantages include:

• Easy operation

• Low maintenance cost

• Convenient troubleshooting

• Excellent value for small and medium-sized factories

This version is ideal for customers looking for dependable daily production without unnecessary complexity.

2.2 PLC Control

The PLC version provides higher automation and improved production management.

Benefits include:

• Stable and reliable operation

• Easier parameter adjustment

• Improved production consistency

• Better production efficiency

It is an excellent choice for transformer manufacturers seeking higher productivity while maintaining easy operation.

2.3 Servo CNC Control

For customers requiring maximum precision and intelligent manufacturing, Bailipower also offers a high-end Servo CNC version.

Features include:

• High-precision servo positioning

• Intelligent control

• Programmable operation

• Faster production cycles

• Reduced operator intervention

• Excellent repeatability

This model is recommended for modern transformer factories and customers with demanding production requirements.

3. Helping Customers Choose the Right Machine

At Bailipower, we understand that every factory is different.

Instead of recommending the same configuration to every customer, our engineers carefully evaluate:

• Production capacity

• Product specifications

• Material characteristics

• Automation requirements

• Available budget

• Future production expansion

Based on these factors, we recommend the most appropriate machine configuration and control system.

The best machine is not necessarily the most expensive one—it is the one that best fits your production needs.

This philosophy has helped customers in many countries select equipment with confidence while avoiding unnecessary investment.

4. Helping Customers Use the Machine Better

Purchasing a machine is only the beginning.

Bailipower provides comprehensive technical support throughout the entire service life of the machine, including:

• Professional pre-sales consultation

• Machine selection assistance

• Customized machine design

• Installation guidance

• Operator training

• Technical support

• Spare parts supply

• Long-term after-sales service

Our objective is simple:

Help customers maximize productivity, minimize downtime, and achieve reliable long-term operation.

5. Applications

The PCS-1000 is widely used in the production of:

• Dry-type transformers

• Oil-immersed transformers

• Transformer insulation components

• Electrical insulation materials

• Motor insulation parts

• Pressboard processing factories

• Electrical equipment manufacturers

Suitable materials include:

• Transformer pressboard

• Insulation paper

• Fiberglass board

• Electrical insulation board

• Other rigid insulating materials

6. Technical Specifications

Customized specifications are available to meet different production requirements.

7. Why Choose Bailipower?

Bailipower specializes in transformer manufacturing equipment and electrical insulation processing machinery.

We are committed not only to manufacturing reliable machines, but also to helping customers improve production efficiency through practical engineering solutions.

Our advantages include:

• Professional transformer equipment manufacturer

• Three control system options

• Customized machine solutions

• Strict quality inspection

• Worldwide export experience

• Fast technical response

• Long-term spare parts support

• Reliable after-sales service

From machine selection to installation and long-term operation, Bailipower works closely with customers to build efficient, reliable, and sustainable production lines.

At Bailipower, we don't simply manufacture machines—we help customers choose the right machine and use it better.

8. Frequently Asked Questions (FAQ)

8.1 Q: What materials can the PCS-1000 process?

A: The PCS-1000 is designed for transformer pressboard, insulation paper, fiberglass board, electrical insulation board, and other rigid insulating materials.

8.2 Q: What is the maximum cutting diameter?

A: The standard model supports a maximum cutting diameter of 1000 mm. Customized larger models are available upon request.

8.3 Q: Can one machine cut different circle sizes?

A: Yes. The cutting diameter is adjustable, allowing one machine to produce various inner and outer circle dimensions.

8.4 Q: Which control system should I choose?

A: Bailipower offers three control options:

• Relay Control – economical and easy to maintain.

• PLC Control – higher automation and production efficiency.

• Servo CNC Control – intelligent operation and maximum precision.

Our engineers will recommend the most suitable configuration according to your production requirements and budget.

8.5 Q: Can the machine be customized?

A: Yes. We provide customized cutting diameters, voltages, machine dimensions, tooling, colors, and other configurations based on customer requirements.

8.6 Q: Is operator training provided?

A: Yes. Bailipower provides installation guidance, operator training, and complete technical support to ensure customers can operate the machine safely and efficiently.

8.7 Q: What after-sales service does Bailipower provide?

A: We offer technical consultation, spare parts support, maintenance guidance, and long-term after-sales service to help customers maximize machine reliability and productivity.

8.8 Q: Why choose Bailipower instead of other suppliers?

A: Bailipower focuses on helping customers choose the right machine and use it better. In addition to reliable equipment, we provide three control options, customized solutions, engineering consultation, operator training, and comprehensive after-sales support to ensure long-term production success.
