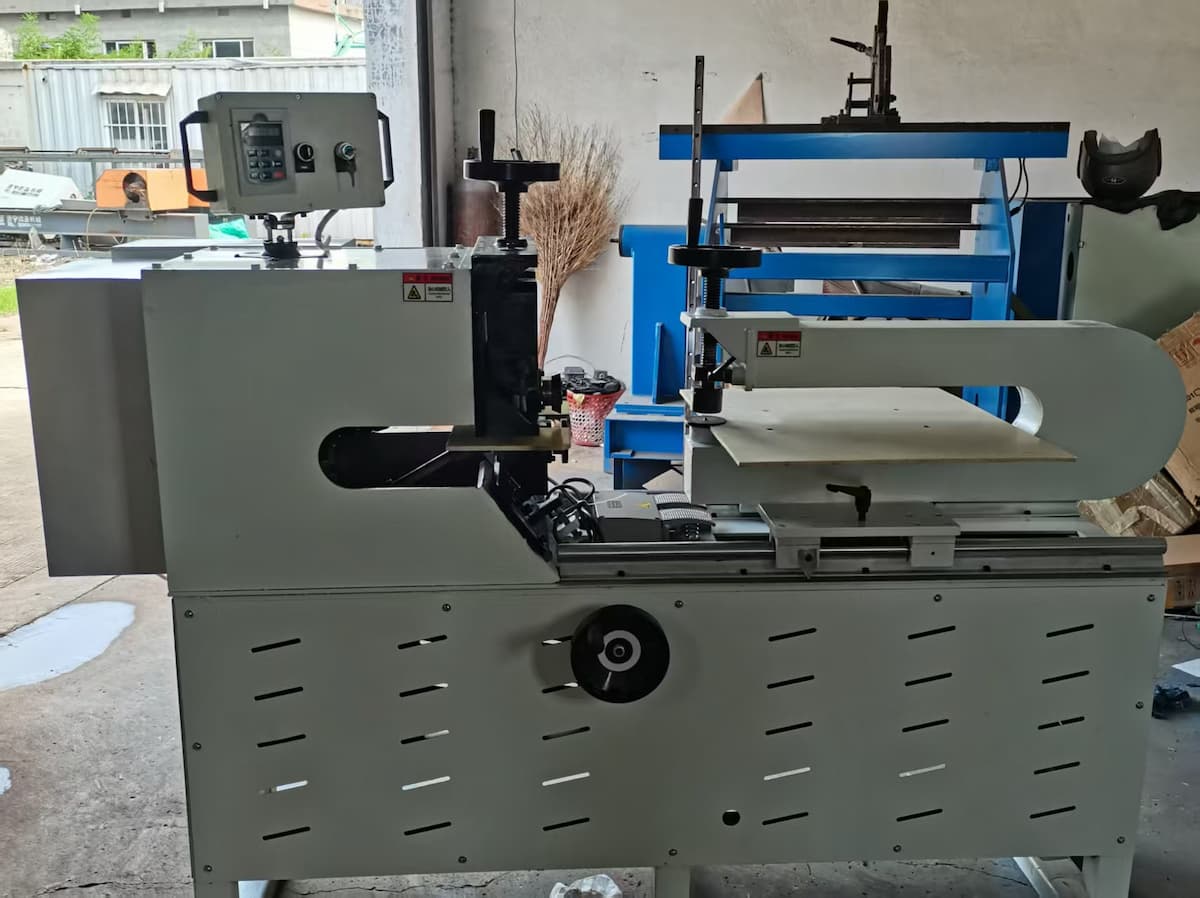

Pressboard Circle Cutting Machine PCS-2000

High-Capacity Circle Cutting Solution for Large Transformer Insulation Components

Bailipower Pressboard Circle Cutting Machine PCS-2000 is specifically developed for precision cutting of large-diameter transformer pressboard, insulation paper, fiberglass board, epoxy insulation board, and other rigid electrical insulation materials. With a maximum cutting diameter of 2000 mm, the PCS-2000 is an ideal solution for manufacturers producing large insulation rings and circular components for power transformers, reactors, motors, and other electrical equipment.

Designed with a heavy-duty machine frame and precision mechanical transmission system, the PCS-2000 delivers stable cutting accuracy, smooth burr-free edges, and excellent repeatability during continuous production. Its large working capacity allows manufacturers to process oversized insulation components efficiently while maintaining consistent product quality.

At Bailipower, we believe manufacturing an excellent machine is only part of our responsibility. More importantly, we help customers choose the right machine and use it better, providing practical solutions that improve productivity, reduce operating costs, and simplify machine operation.

Key Features

Large Cutting Capacity up to 2000 mm

The PCS-2000 is designed for processing large circular insulation components with a maximum cutting diameter of 2000 mm, making it suitable for manufacturers producing large transformer insulation parts.

Excellent Cutting Accuracy

A rigid mechanical structure and precision guiding system ensure consistent roundness and dimensional accuracy throughout the cutting process.

Smooth Burr-Free Cutting Surface

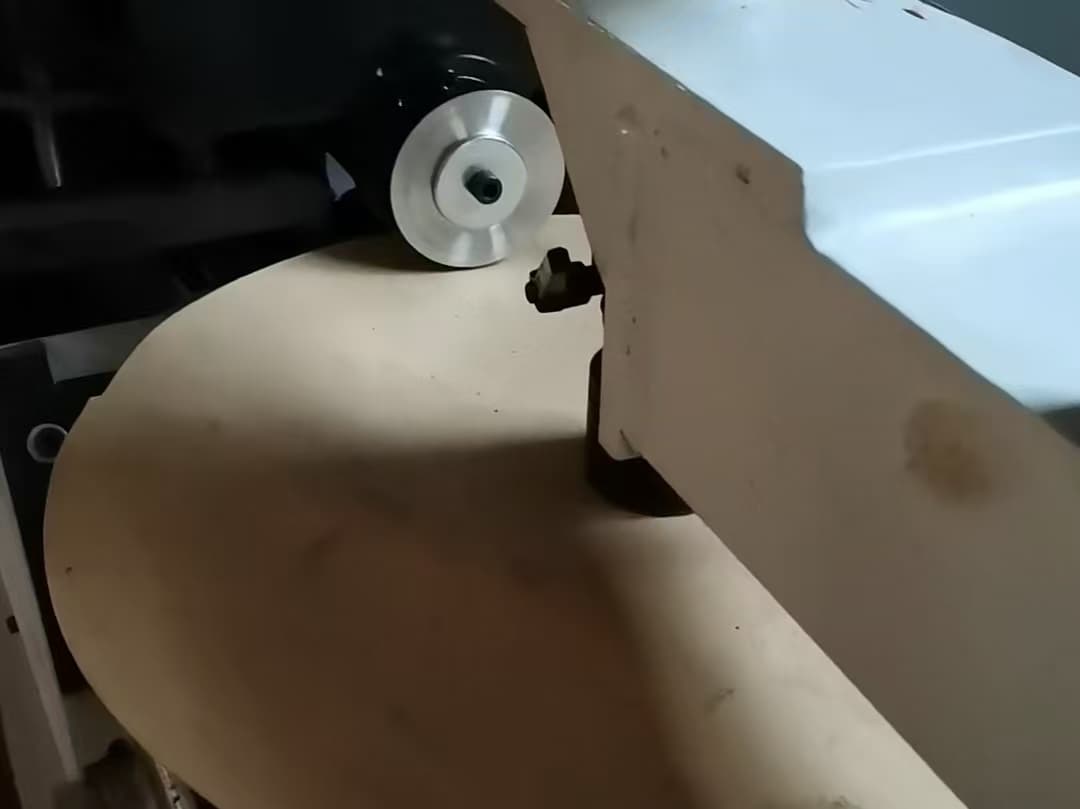

Optimized blade design produces clean and smooth cutting edges, reducing manual finishing work and improving the appearance and quality of insulation components.

Stable Heavy-Duty Structure

Compared with smaller models, the PCS-2000 adopts a stronger machine body and larger working platform to maintain stability when processing oversized insulation boards.

Adjustable Cutting Diameter

The cutting diameter can be adjusted conveniently, allowing one machine to process insulation circles of various specifications without replacing major components.

Easy Operation and Reliable Performance

The machine is designed for simple operation, low maintenance, and long-term production reliability, making it suitable for continuous industrial use.

Three Control Options for Different Production Requirements

To help customers select the most suitable machine according to production volume, operating habits, and investment budget, Bailipower provides three control solutions.

♠ Relay Control Version

A cost-effective solution with simple electrical components and easy maintenance, suitable for standard production.

♠ PLC Control Version

Provides more stable operation, improved automation, parameter adjustment, and production flexibility.

♠ Servo CNC Control Version

Designed for customers requiring higher automation, better positioning accuracy, programmable operation, and intelligent production management.

Rather than offering only one configuration, Bailipower enables customers to choose the control system that best matches their production requirements.

Typical Applications

The PCS-2000 is widely used for manufacturing:

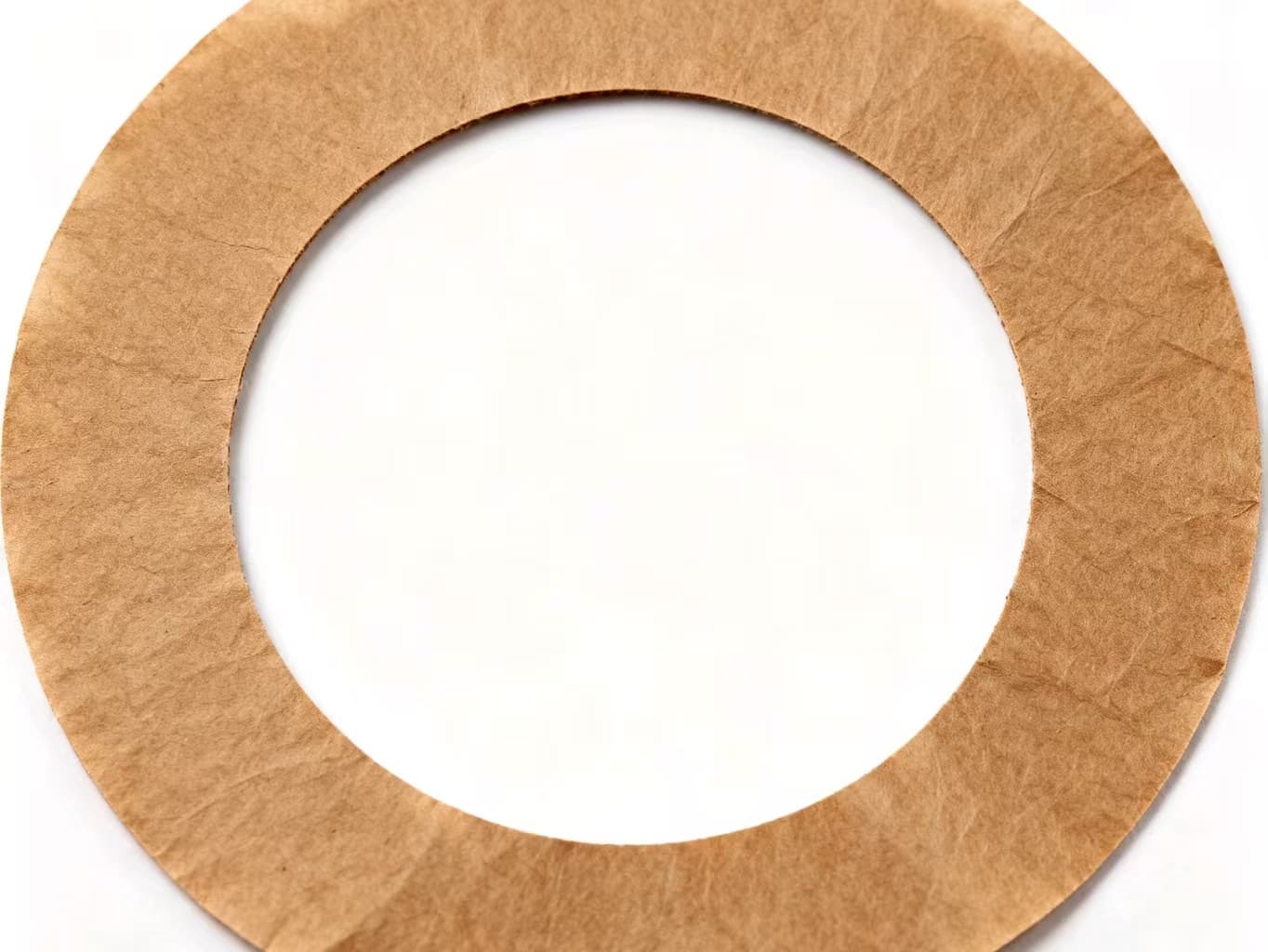

• Large transformer pressboard insulation rings

• Circular insulation paper components

• Fiberglass insulation discs

• Epoxy insulation boards

• Electrical insulation gaskets

• Motor insulation components

• Power transformer insulation parts

• Electrical equipment insulation products

Technical Specifications

Why Choose Bailipower?

Bailipower is committed to providing more than machinery. We help customers select the right equipment, optimize production efficiency, and simplify machine operation through practical engineering experience.

Every PCS-2000 is designed with durability, precision, and ease of maintenance in mind, helping transformer manufacturers achieve stable production and long-term operating value.

Frequently Asked Questions (FAQ)

Q1. What is the maximum cutting diameter of the PCS-2000?

A: The PCS-2000 can process insulation circles up to 2000 mm in diameter, making it suitable for large transformer insulation components.

Q2. What insulation materials can the PCS-2000 cut?

A: It is suitable for transformer pressboard, insulation paper, fiberglass board, epoxy insulation board, and many other rigid electrical insulation materials.

Q3. What is the difference between PCS-1000 and PCS-2000?

A: The PCS-1000 is designed for insulation circles up to 1000 mm, while the PCS-2000 supports cutting diameters up to 2000 mm. The PCS-2000 also features a heavier machine structure, larger working area, and is better suited for manufacturing large transformer insulation rings.

Q4. Which control system should I choose?

A: Bailipower offers three control options:

• Relay Control

• PLC Control

• Servo CNC Control

Our engineers can recommend the most suitable configuration based on your production requirements and budget.

Q5. Can the machine be customized?

A: Yes. Bailipower provides customized voltage, electrical standards, control systems, and special configurations according to different countries and customer requirements.

Q6. Is operator training provided?

A: Yes. We provide operating manuals, online technical support, and training guidance to help customers install, operate, and maintain the machine efficiently.

Q7. Why choose Bailipower?

A: Because Bailipower focuses not only on manufacturing reliable machines but also on helping customers choose the right machine and use it better. We provide practical technical support before, during, and after the purchase to maximize long-term production value.
