Bailipower PCW-0.5T Cantilever Horizontal Winding Machine-High-Stability, Cost-Effective Solution for Small-to-Medium Transformer Coils

The Bailipower Philosophy:

We believe industrial manufacturing should be straightforward, not stressful. Bailipower helps you choose the right machine with absolute clarity, and Bailipower ensures you operate your machine with complete confidence. We eliminate buying guesswork and operational hassle by offering a clear path to the exact technology your workshop requires.

1.Product Overview

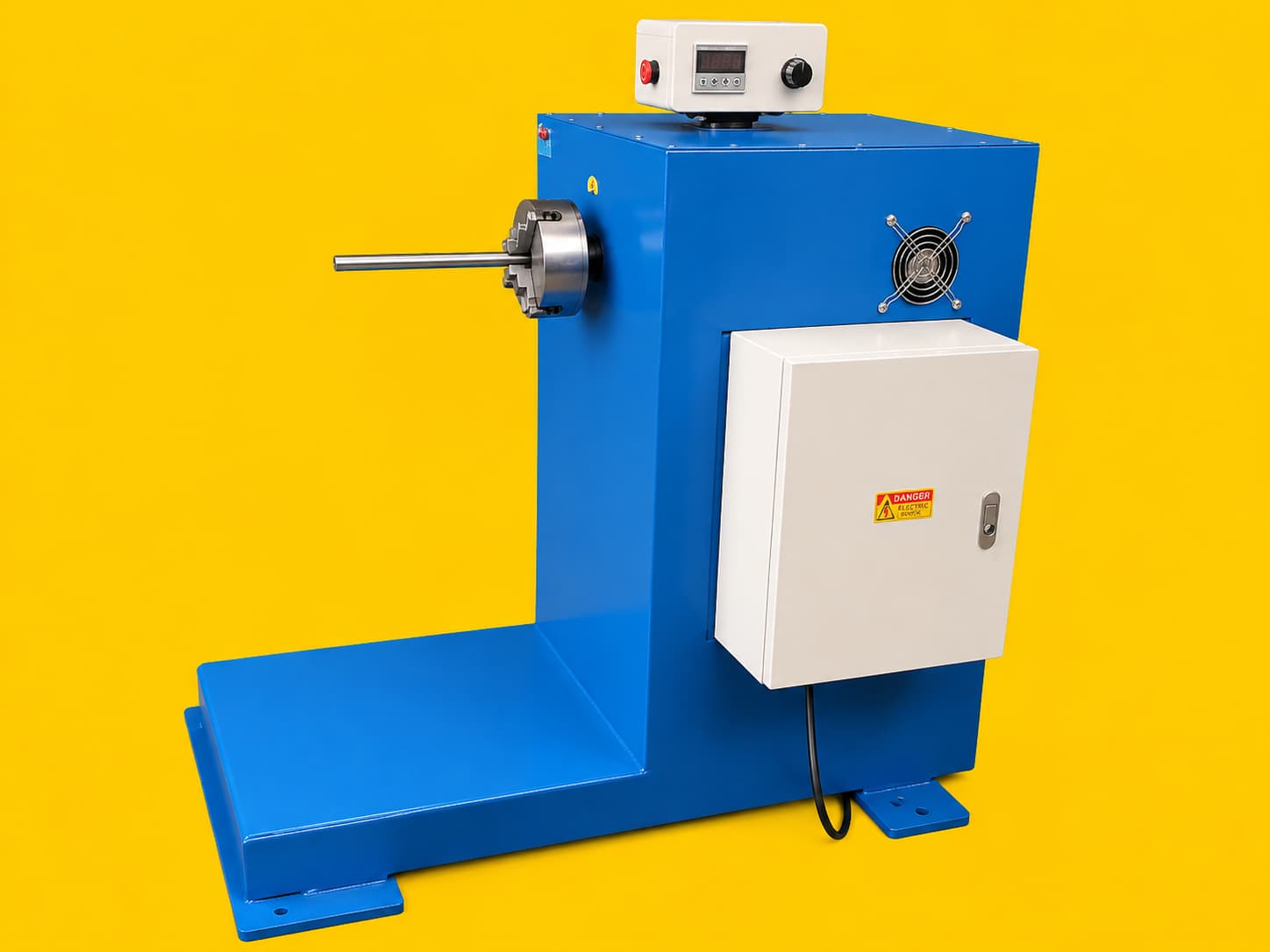

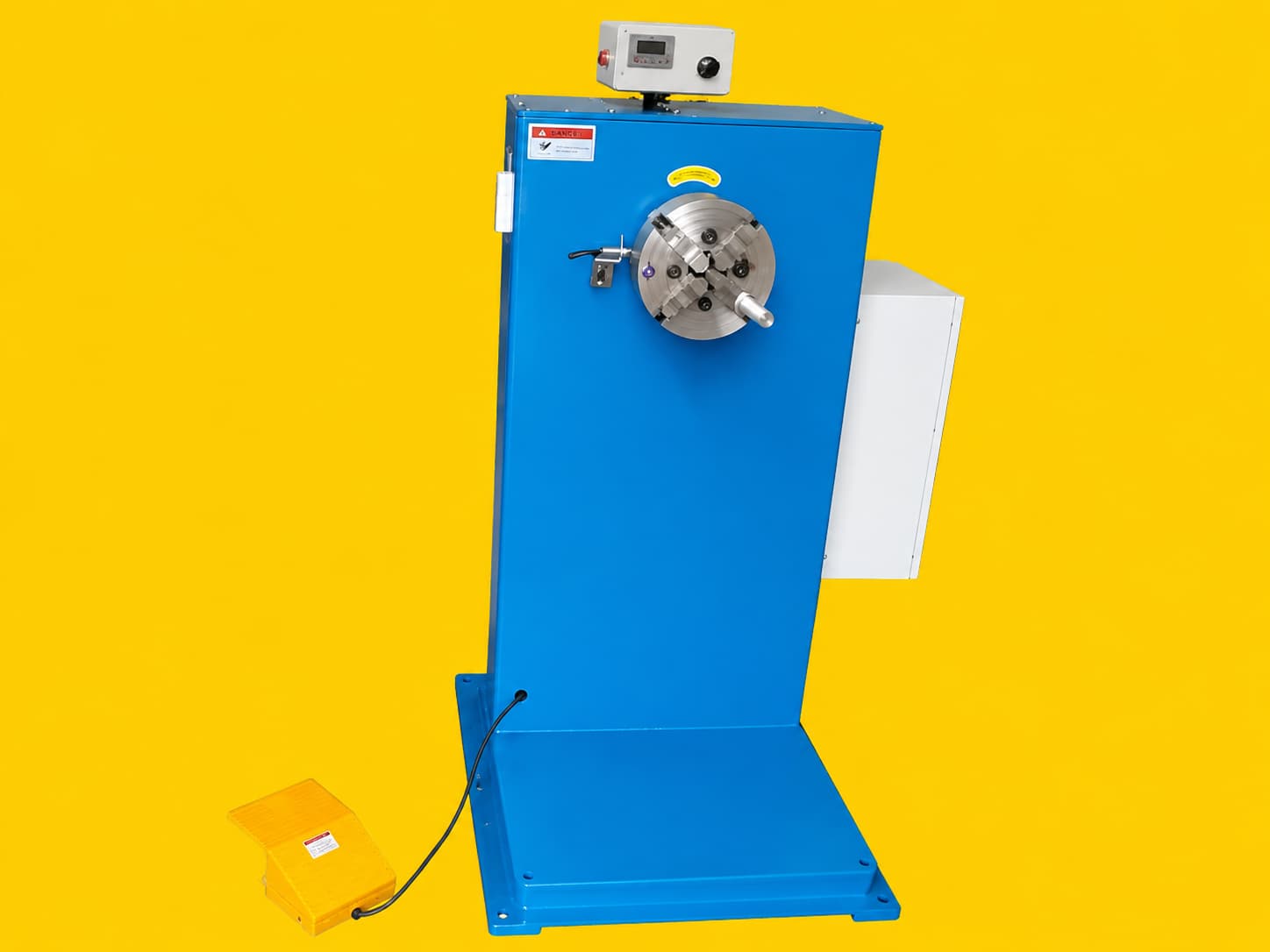

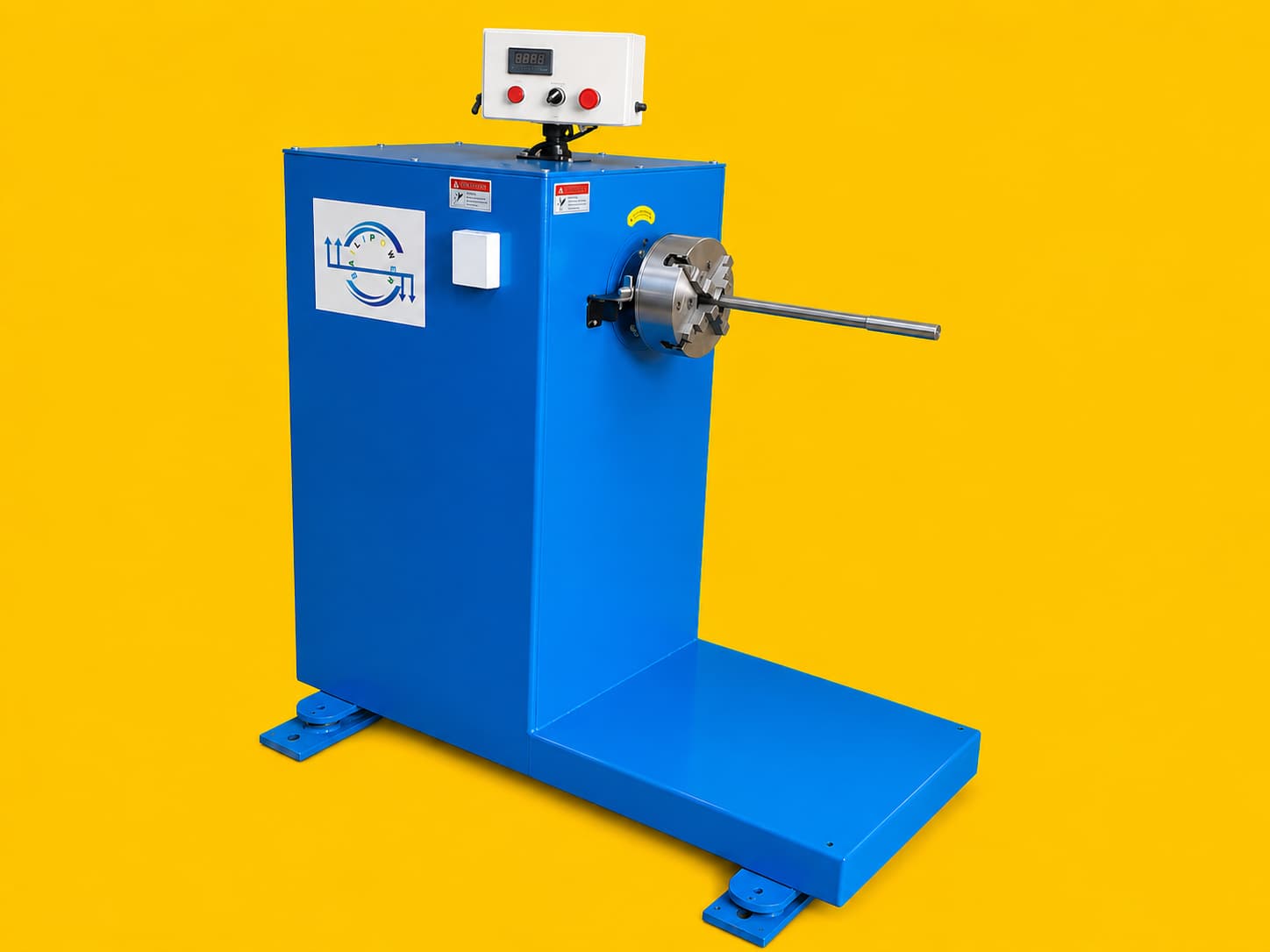

The Bailipower PCW-0.5T is a budget-friendly, cantilever-type horizontal winding machine engineered for small-to-medium transformer coil manufacturing. Utilizing a dedicated hardware-based pulse counter paired with a variable frequency drive (VFD) stepless speed regulation system, this machine delivers exceptional stability, near-zero maintenance overhead, and an incredibly short learning curve.

Designed specifically for distribution transformers, 3D geometric/wound core transformers, and specialty voltage coils, the PCW-0.5T features a compact footprint and a streamlined mechanical structure.

Please Note: While Bailipower manufactures a comprehensive range of winding machinery across various sizes and automation levels, this product introduction focuses specifically on the features, technical parameters, and advantages of the PCW-0.5T model.

2. The Bailipower Ecosystem: Helping You Choose Better

To live up to our promise of helping you choose better, Bailipower does not believe in a "one-size-fits-all" approach. While this document highlights the hardware-counted PCW-0.5T, we offer a complete matrix of winding machines tailored to your specific budget, production volume, and technical requirements:

• Counterless / Basic Series: The ultimate stripped-down, ultra-budget workhorse for manual operations and basic repair tasks.

• Hardware-Counter Series (The PCW-0.5T Featured Here): The ideal "sweet spot" combining pure hardware reliability, digital accuracy, and zero software failure points.

• Standard PLC Series: Upgraded with programmable logic controllers and digital screens, allowing multi-recipe storage and automated parameter shifting—perfect for high-mix, low-volume factories.

• Premium / Advanced PLC Series: High-end automation featuring multi-axis synchronization, precision servo-tension controls, and smart data logging for modern, high-throughput smart factories.

• Custom Dimensions & Scales: Beyond standard models, we build custom-sized machinery with tailored spindle heights, extended winding widths, and heavy-duty load capacities up to several tons.

3. Key Technical Specifications (PCW-0.5T Focus)

4. Why Choose the PCW-0.5T? (Core Product Features)

4.1 Bailipower Helps You Run Better: Seamless Operation From Day One

A machine is only as good as the operator's ability to run it. Bailipower removes the operational barrier so your production never stops.

• Hardware-Based Counter (Anti-Interference): Unlike software counters limited by program scan cycles, our independent hardware circuit responds in microseconds, completely eliminating the risk of missed counts. Featuring automatic power-off memory, it retains your exact turn-count during factory voltage fluctuations or sudden blackouts.

• Low Operating Barrier & Fast Onboarding: The control panel features intuitive, essential controls: Start/Stop, Emergency Stop, Speed Potentiometer, and Counter Setup. Workers can operate the machine independently after just 15 minutes of basic training—making it perfect for factories managing high labor turnover.

• VFD Stepless Speed Control for Versatile Scenarios: With a broad 0–600 r/min speed range, operators can use the lower RPM range for thick wire winding and layer shaping, or ramp up to high RPMs to maximize the throughput of fine-wire mass production.

4.2 Built for Long-Term Reliability & Easy Maintenance

• Near-Zero Maintenance Overhead: By eliminating complex PLC modules, communication bus systems, and software expansion units, we have eliminated the most common industrial failure points. Common troubleshooting can be easily handled by your local qualified electricians.

• Heavy-Duty Welded Frame for Rigid Operation: Constructed with thickened steel plate welding, the 350kg body combined with vibration-dampening leveling pads ensures zero shaking or abnormal noise even at top speeds.

5. Application Guidelines & Material Compatibility

5.1 Suitable Coil & Transformer Profiles

• Primary Application: Ideal for coils typically matching 50kVA to 500kVA distribution transformers, dry-type/oil-immersed transformers, and 3D wound core transformers. It excels in high-speed, multi-layer winding of fine-wire high-voltage coils.

• Compatible Application: Control transformers, isolation transformers, machine tool transformers, and small reactors/inductors within similar dimension and weight envelopes.

• When to Upgrade: For large-scale power transformers (1000kVA and above) requiring wide-width low-voltage heavy copper busbars or foils, the PCW-0.5T is not recommended. Instead, you should choose one of Bailipower's Heavy-Duty PLC Series winding machines.

5.2 Wire Gauge Compatibility

• Round Copper Wire: Optimal range: φ0.5mm to φ3.0mm (best efficiency and tension stability). Limit compatibility: φ0.3mm to φ4.0mm.

• Rectangular/Flat Copper Wire: Compatible with small cross-section enameled or paper-insulated flat wire. Recommended cross-sectional area: 2 mm² to 16 mm².

6. Frequently Asked Questions (FAQ)

Q1: Does the Bailipower PCW-0.5T carry regional certifications (like CE or UL)?

A: While formal regional certification stamps are currently in the application process, the PCW-0.5T is strictly engineered to meet and exceed global industrial design and safety standards. Every electrical component, variable frequency drive, and structural element is selected based on international compliance benchmarks, ensuring safe, reliable, and seamless integration into any professional workshop worldwide.

Q2: What is the main difference between the PCW-0.5T and Bailipower's PLC winding machines? How should I choose?

A: The core differences lie in the control philosophy and target application—and Bailipower helps you choose better based on your actual needs:

• The PCW-0.5T is a hardware-controlled, cost-effective workhorse. Its advantages are rugged durability, zero software glitches, and incredibly low procurement and maintenance costs. It is perfect for factories with fixed product lines seeking high reliability without a hefty price tag.

• Bailipower PLC Series machines rely on software programming. They offer multi-recipe storage and automatic parameter switching, which is ideal if your production changes daily with dozens of different transformer specifications, or if you require automated automated axis synchronization.

Q3: Can this machine wind flat/rectangular copper wire? What is the maximum size?

A: Yes, it supports small-to-medium flat copper wires within a recommended cross-sectional area of 2 mm² to 16 mm². Due to the torque profile of the 1.5kW motor, larger copper strips may not achieve optimal layer tightness. If your production heavily relies on thick, low-voltage flat wire busbars, please let us know; Bailipower offers larger high-torque models perfectly suited for heavy wire dimensions.

Q4: Can the power supply be customized for my country's local grid?

A: Yes, absolutely. To ensure Bailipower helps you run better, we offer flexible power configuration customizations. You can specify your requirements, such as 3-Phase 480V/415V/380V (50/60Hz) for standard industrial plants, or 1-Phase 220V (50/60Hz) for smaller workshops lacking a 3-phase grid.

Q5: How easy is it to get replacement parts or fix the machine locally?

A: Exceptionally easy. Because the machine features a simplified electromechanical design without proprietary software, any qualified local electrician can easily troubleshoot it using standard multi-meters and our provided schematics. Furthermore, all core electrical and mechanical components conform to international standard specifications, meaning you can source replacement parts locally anywhere in the world, reducing your downtime to a minimum.

Q6: What kind of international after-sales support does Bailipower provide?
