Bailipower PCS-1600D Circle Cutting Machine

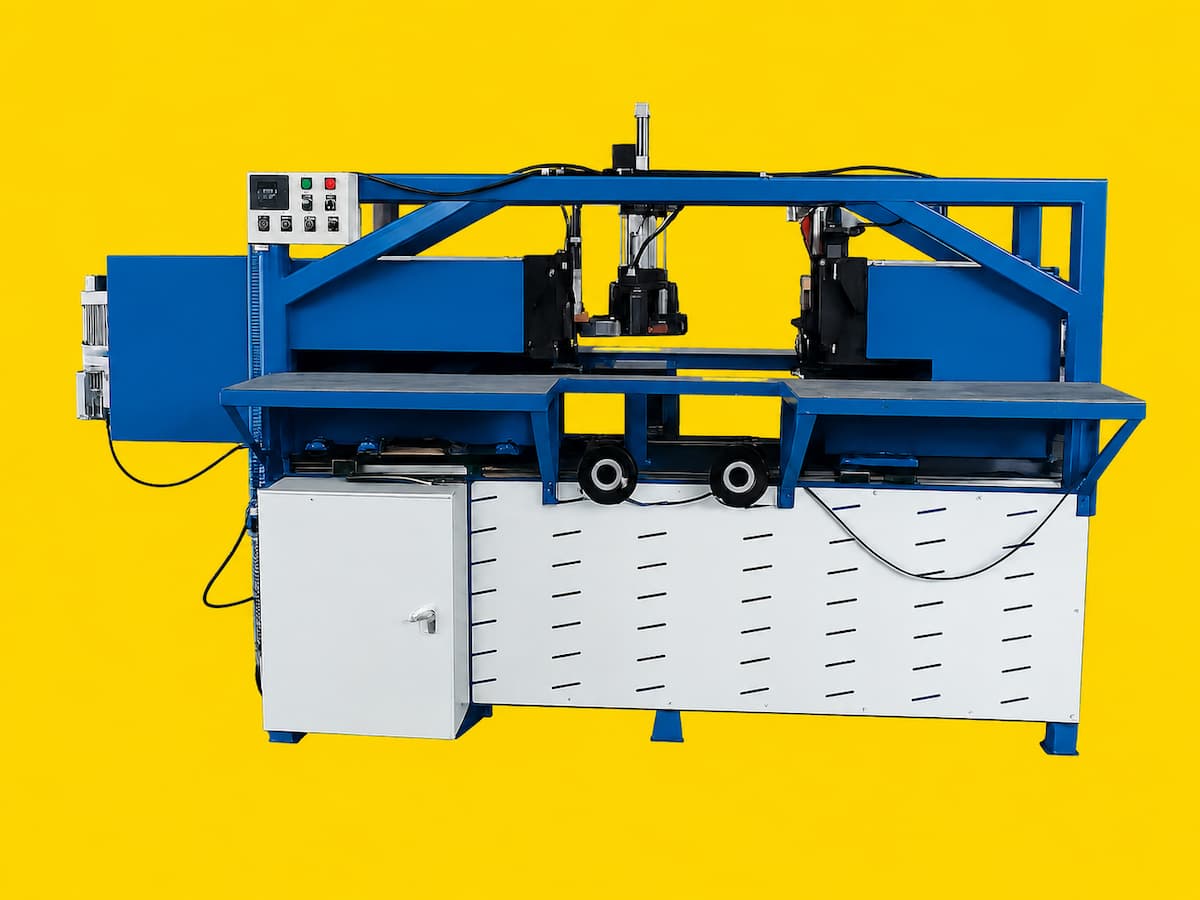

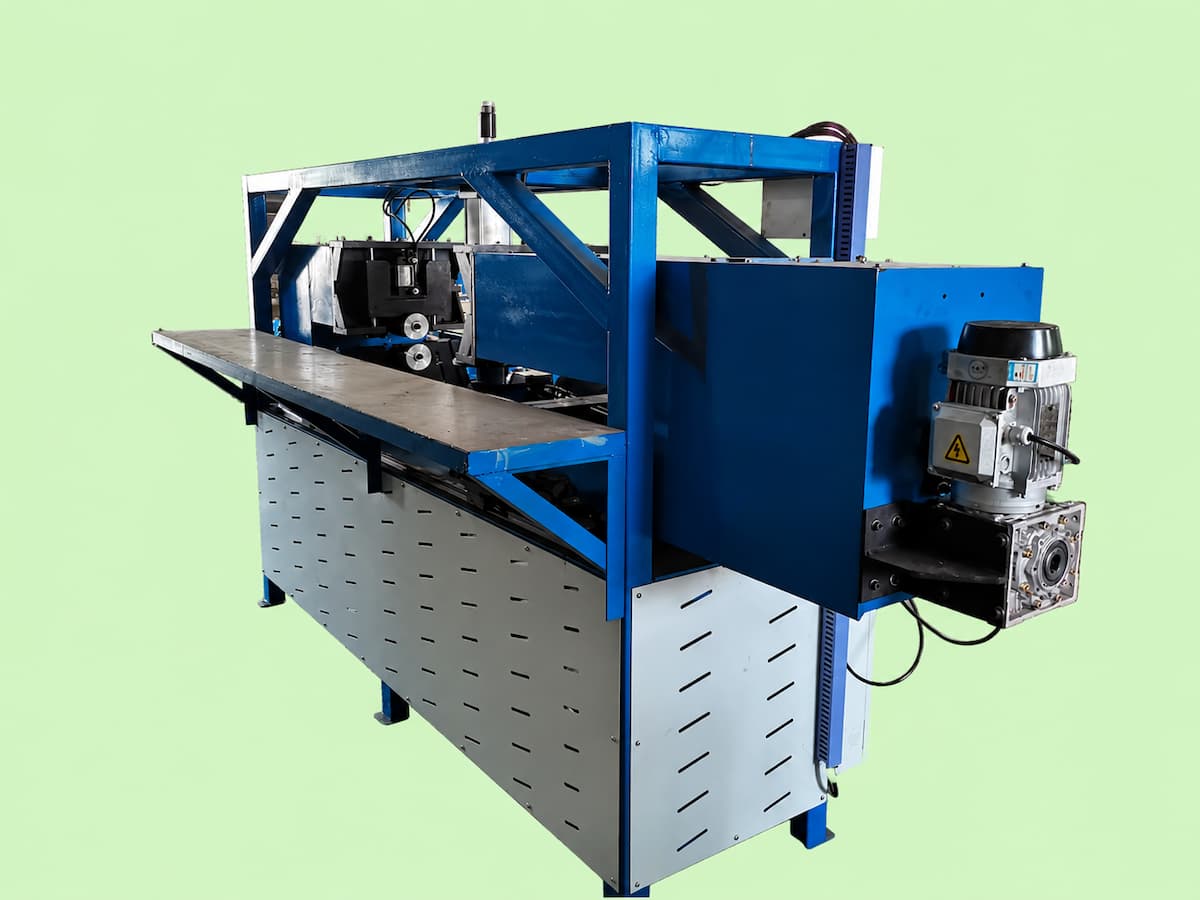

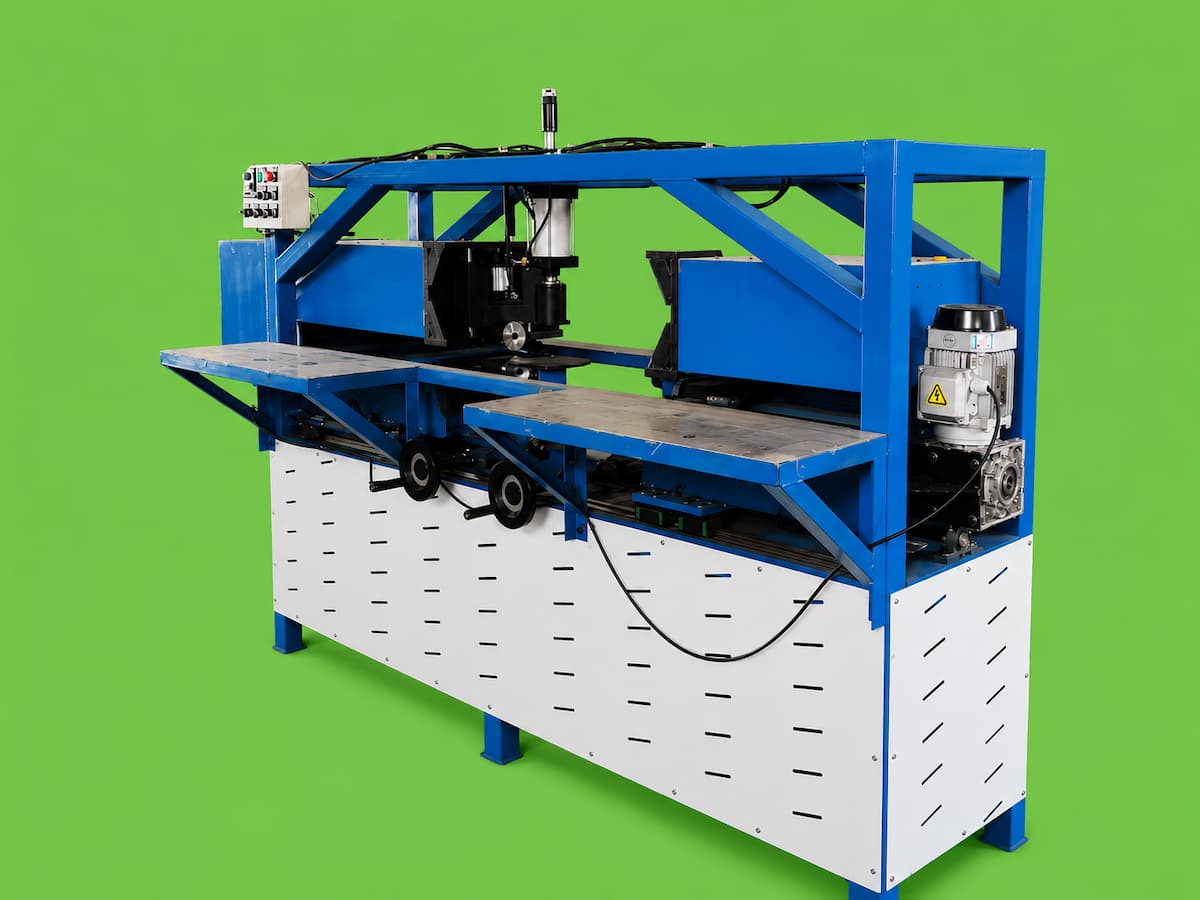

Bailipower PCS-1600D Dual-Head Transformer Pressboard Circle Cutting Machine
1. Precision Circle Cutting for Transformer Insulation Manufacturing
The Bailipower PCS-1600D Dual-Head Transformer Pressboard Circle Cutting Machine is specially designed for the production of circular insulation components used in transformers, reactors, motors, and other electrical equipment.
The machine is primarily used for cutting transformer insulating paperboard (pressboard) into precise rings, discs, spacers, and other circular components. It can also process fiberglass boards and similar insulation materials. With its dual-head design, the PCS-1600D improves production efficiency while maintaining excellent cutting accuracy and edge quality.
Featuring variable-speed control, a robust steel frame, and a large cutting diameter capacity of up to Ø1600 mm, the PCS-1600D is an ideal solution for transformer manufacturers and insulation component suppliers seeking reliable and cost-effective production equipment.
2. Key Features
Dual-Head Cutting Design
The dual-head structure improves productivity and enables efficient processing of large-diameter insulation components.
Wide Cutting Diameter Range
Capable of cutting circles from Ø300 mm to Ø1600 mm, covering the majority of transformer insulation applications.
Excellent Cutting Accuracy
The machine achieves a roundness tolerance of ±0.8 mm, ensuring consistent product quality.
Variable-Speed Operation
Both motor speed and blade speed can be adjusted according to material thickness and cutting requirements.
Stable and Reliable Construction
A heavy-duty welded steel frame provides excellent rigidity and long-term operational stability.
Suitable for Multiple Materials
Designed primarily for transformer pressboard, while also suitable for fiberglass board and other electrical insulation sheet materials.
3. Typical Applications
The PCS-1600D is widely used for manufacturing:
Transformer pressboard rings
Insulation discs
Insulation spacers
Transformer insulation components
Electrical insulation board parts
Fiberglass board circular components
Applicable industries include:
Power transformer manufacturing
Distribution transformer production
Reactor manufacturing
Electrical insulation processing
Transformer component suppliers
4.Technical Specifications
| Item | Specification |
|---|---|
| Model | PCS-1600D |
| Machine Type | Dual-Head Transformer Pressboard Circle Cutting Machine |
| Overall Dimensions (L × W × H) | 3000 × 1200 × 1800 mm |
| Machine Weight | Approx. 1100 kg |
| Application Materials | Transformer insulating paperboard (pressboard), fiberglass board, insulation board |
| Power Supply | Three-phase 220V, 380V, 415V… 50Hz, 60Hz |
| Main Motor Power | 0.75 kW × 2 |
| Main Motor Speed Range | 0–1400 r/min |
| Cutting Blade Diameter | 80 mm |
| Blade Speed Range | 0–140 r/min |
| Cutting Linear Speed Range | 0–35.2 m/min |
| Maximum Cutting Diameter | Ø1600 mm |
| Minimum Cutting Diameter | Ø300 mm |
| Hold-down Plate Lift Travel | >25 mm |
| Blade Vertical Travel | 15 mm |
| Roundness Tolerance | ±0.8 mm |
| Cutting Thickness Range | 0.5–5 mm |
5.Why Choose Bailipower PCS-1600D?
Bailipower focuses on providing practical and reliable equipment for the transformer industry. The PCS-1600D is designed to help customers improve production efficiency, reduce material waste, and achieve consistent cutting quality in transformer insulation manufacturing.
With years of experience in transformer equipment production, Bailipower offers not only machinery, but also technical support, application guidance, and customized solutions to meet specific production requirements.
6.Frequently Asked Questions (FAQ)
6.1 Q: What materials can the PCS-1600D process?
A: The machine is mainly designed for transformer insulating paperboard (pressboard). It can also process fiberglass boards and other similar electrical insulation materials.
6.2 Q: What is the maximum cutting diameter?
A: The maximum cutting diameter is Ø1600 mm.
6.3 Q: What is the minimum cutting diameter?
A: The minimum cutting diameter is Ø300 mm.
6.4 Q: What thickness of material can be cut?
A: The machine can process materials with a thickness range of 0.5 mm to 5 mm.
6.5 Q: Is the cutting speed adjustable?
A: Yes. Both the motor speed and blade speed can be adjusted according to different material types and thicknesses.
6.6 Q: What industries is this machine suitable for?
A: The PCS-1600D is suitable for:
Transformer manufacturers
Reactor manufacturers
Motor manufacturers
Electrical insulation component suppliers
Insulation material processing companies
6.7 Q: What is the cutting accuracy of the machine?
A: The machine provides a roundness tolerance of ±0.8 mm, ensuring accurate and consistent circular components.
6.8 Q: Can the machine be customized?
A: Yes. Bailipower can provide customized solutions based on customer requirements, including cutting diameter range, electrical configuration, and other special specifications.
6.9 Q: Does Bailipower provide installation and technical support?
A: Yes. Bailipower provides technical consultation, operation guidance, and after-sales support to help customers achieve efficient and reliable production.
